Coolant Support System Plugs

IMG_2357
IMG_2370
IMG_2531
Trolley Coolant Plug Assembly

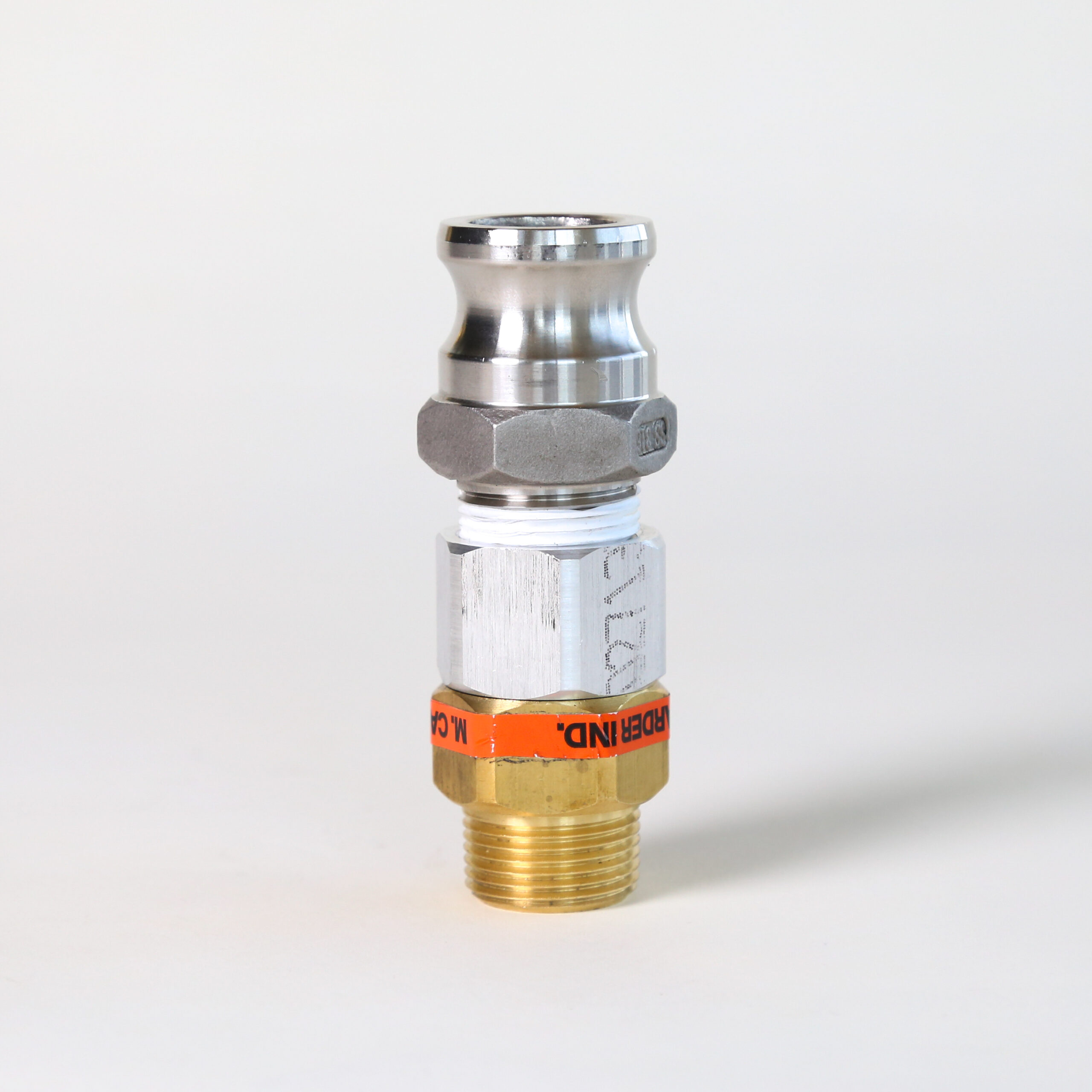

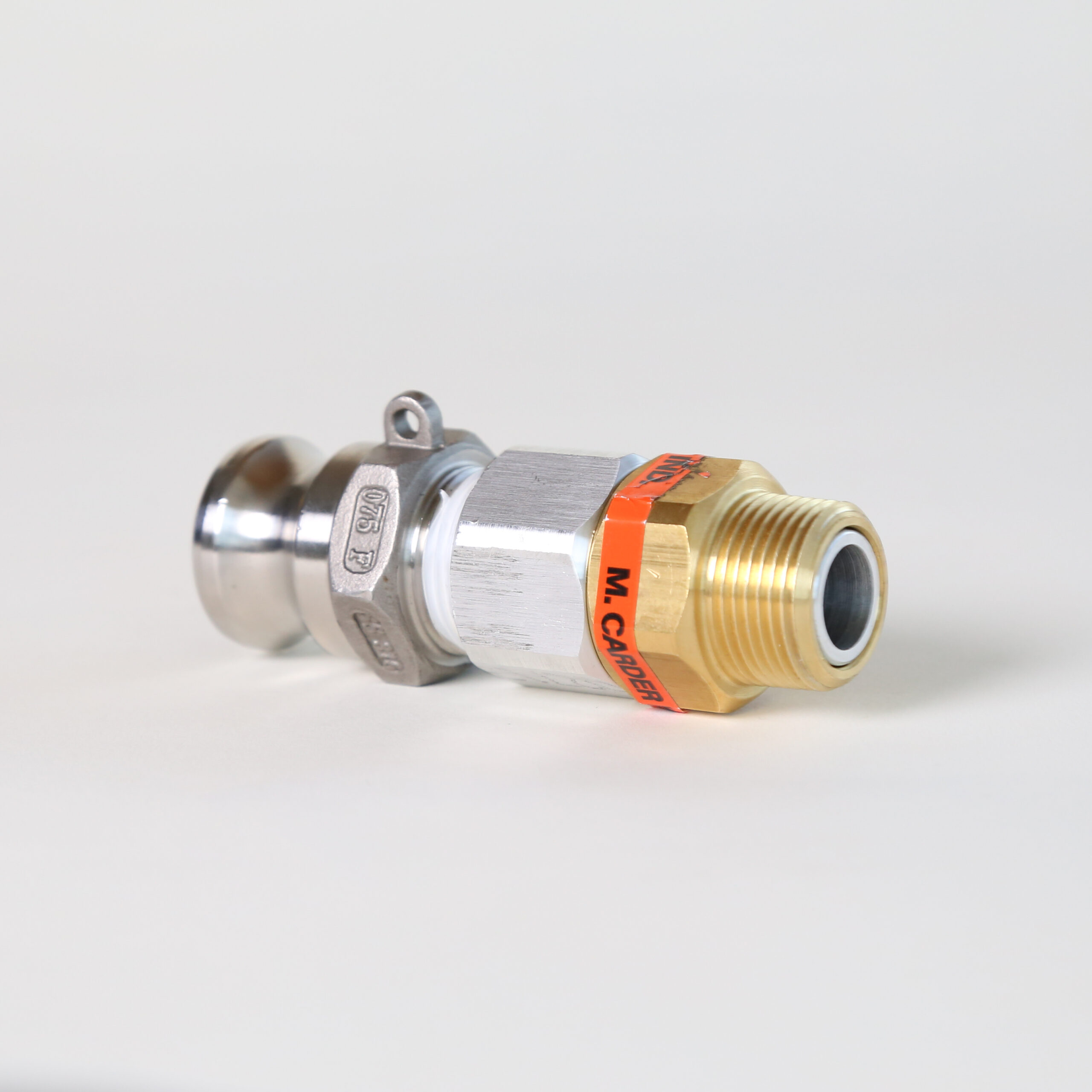

Plug Swivel Assembly
The Bend-Tech plug assemblies improve and streamline plasma cutting with a coolant system.
  • Available in a variety of shapes and sizes
  • Features a durable, plastic frame and replaceable rubber gasket
  • Reduces slag and dross build-up for minimal clean-up prior to welding
  • Proudly made in the USA


Contact your Bend-Tech sales representative to place an order for standard- or custom-sized plug assemblies.


Request a Quote

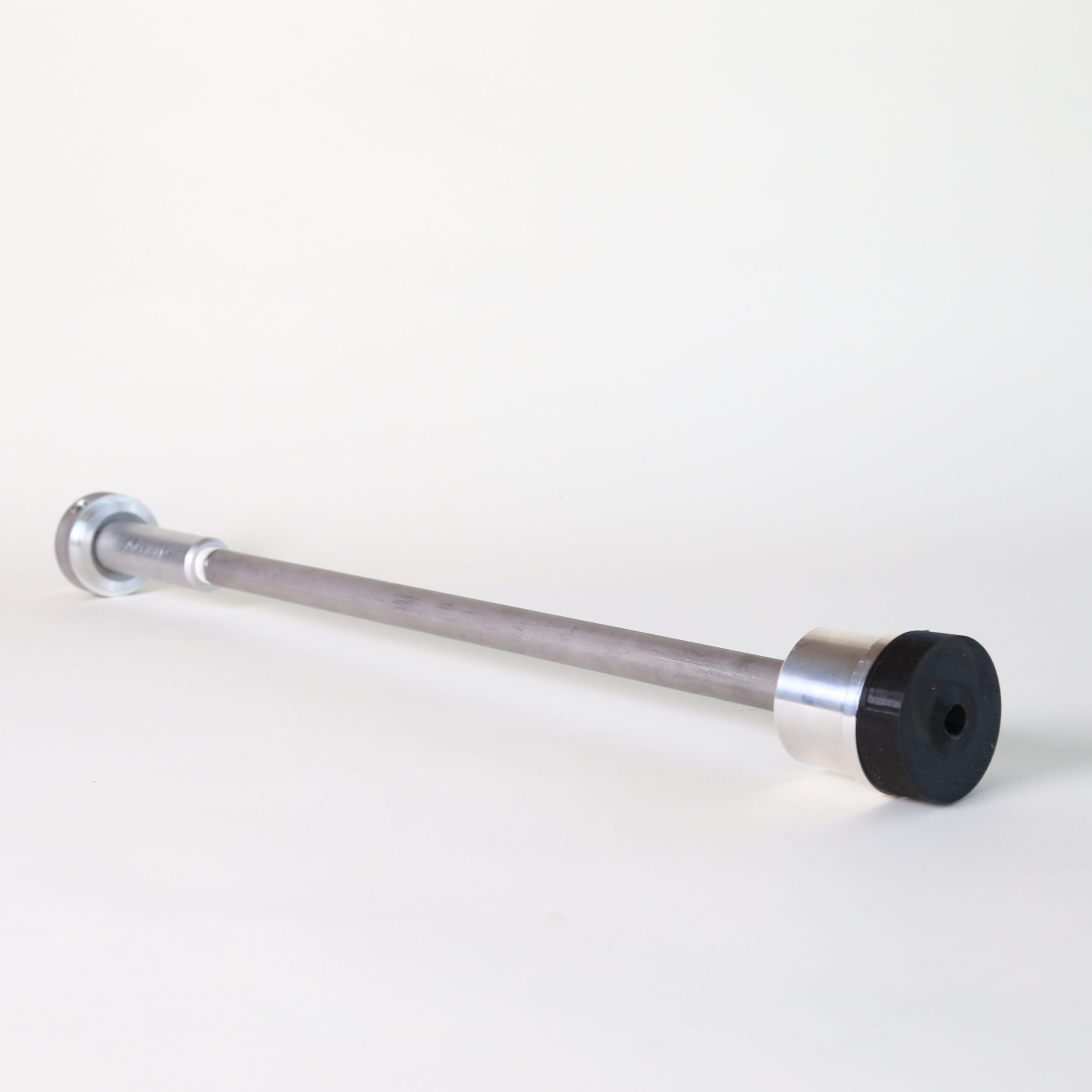

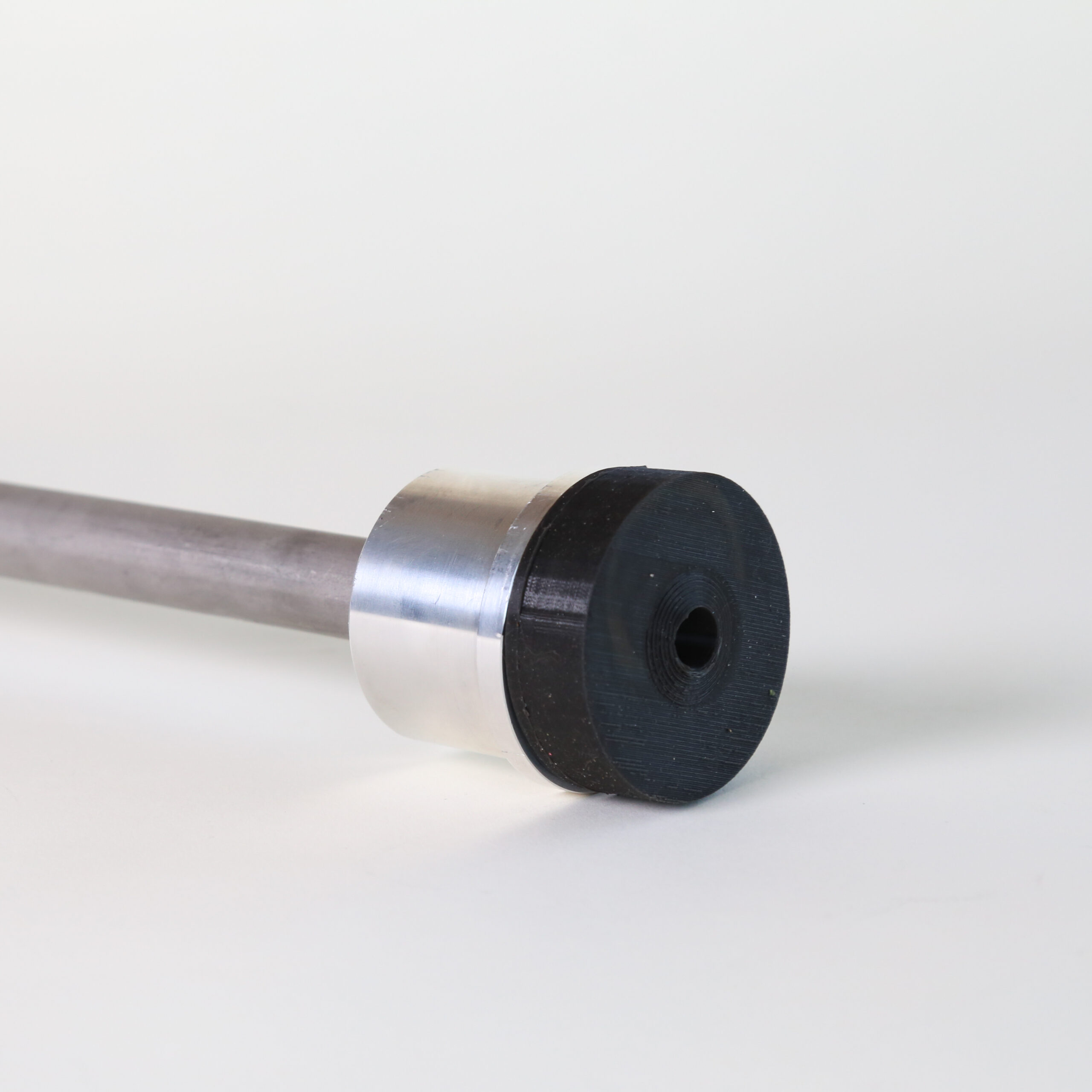

Trolley Assembly
Part Number
Description
050-0056
Trolley Coolant Plug Assembly
050-0057
Plug Swivel Assembly
*Trolley Coolant Plug Assembly does not require the Plug Swivel Assembly

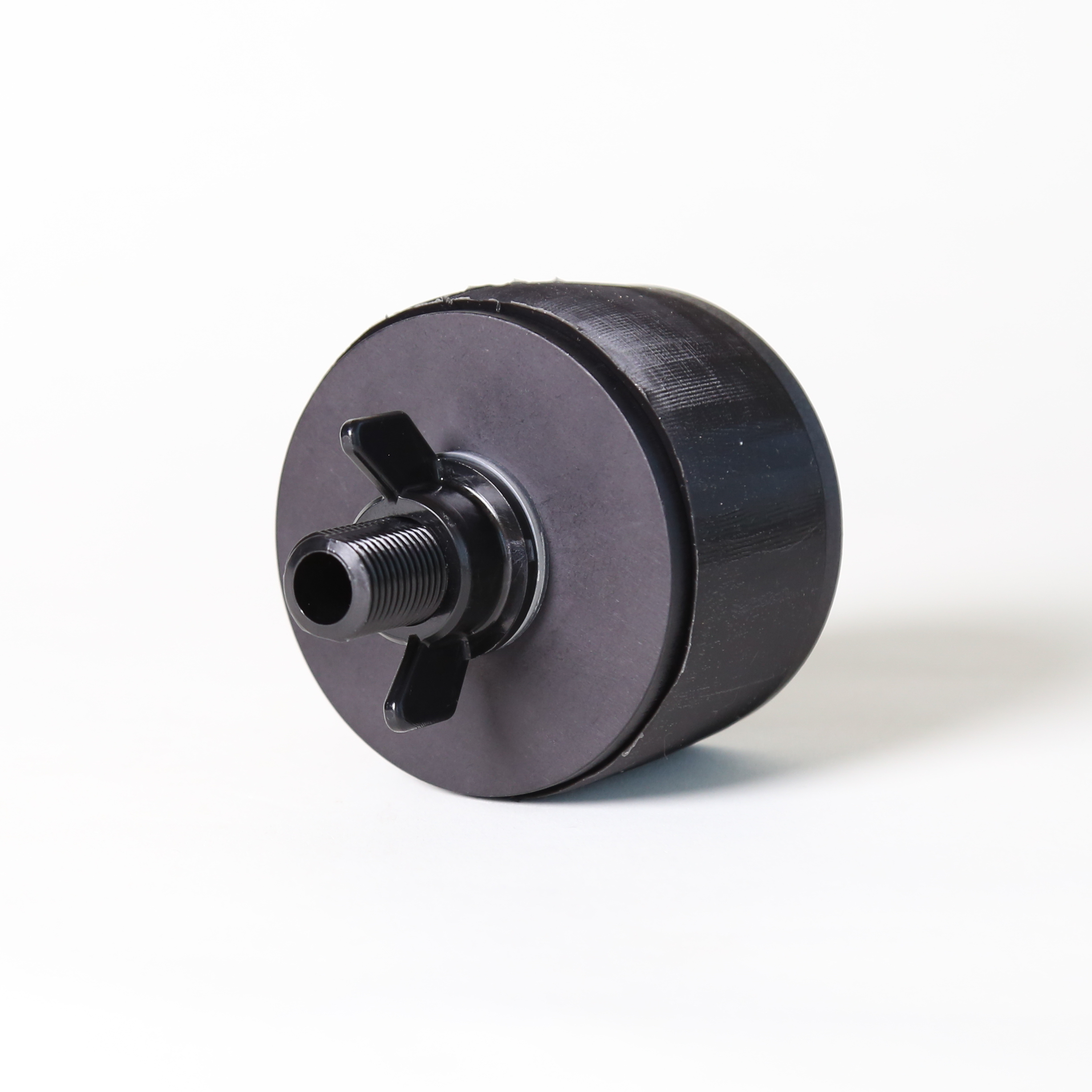

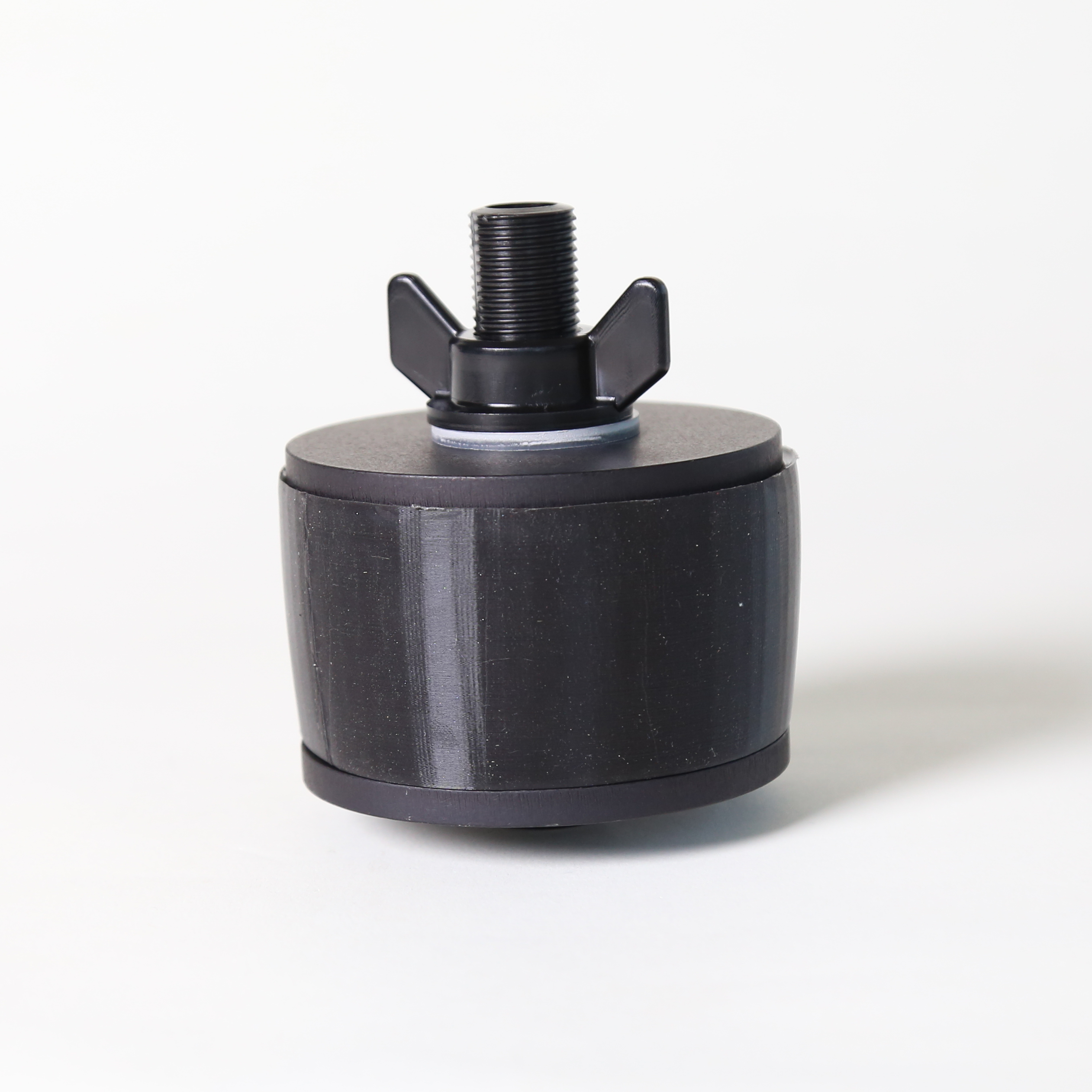

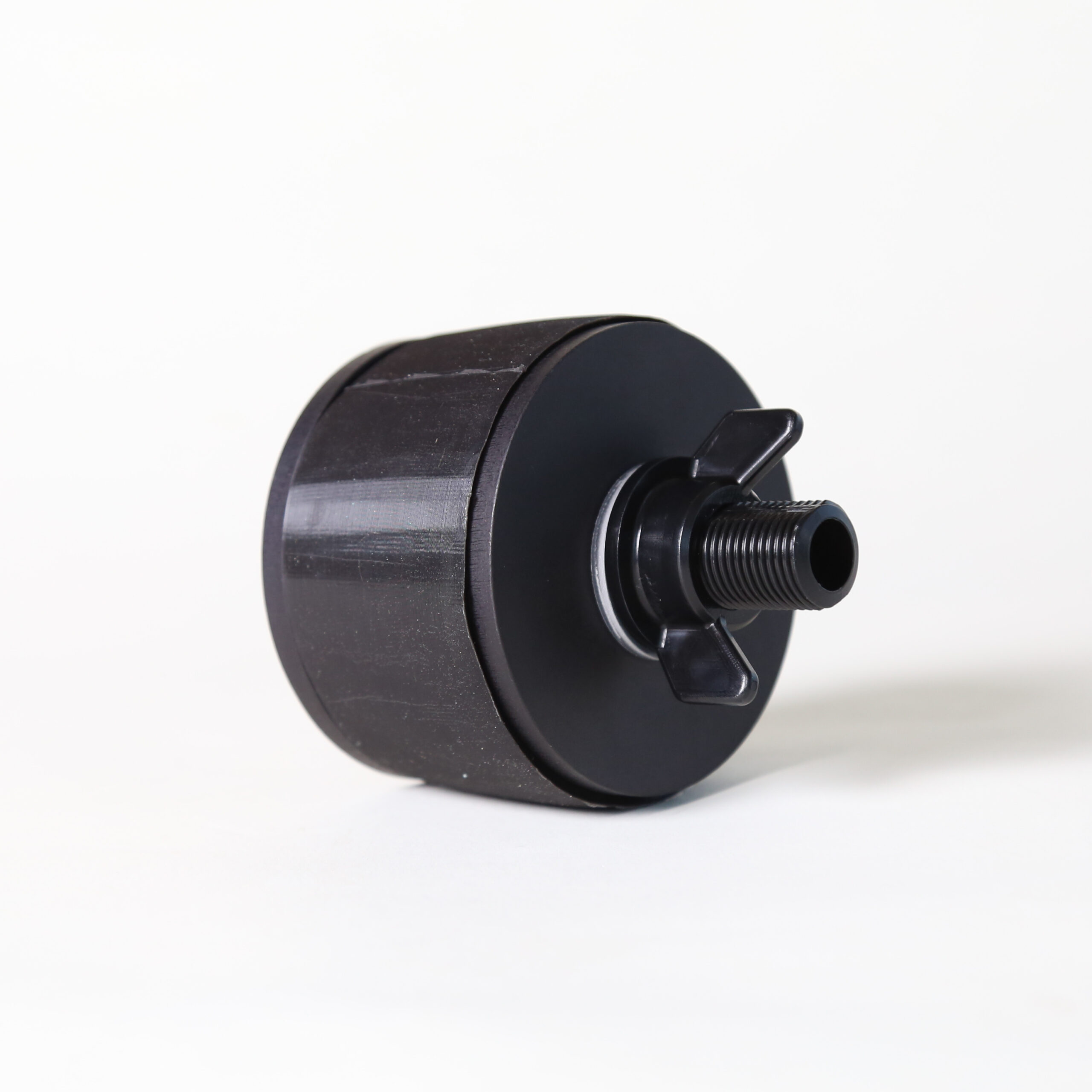

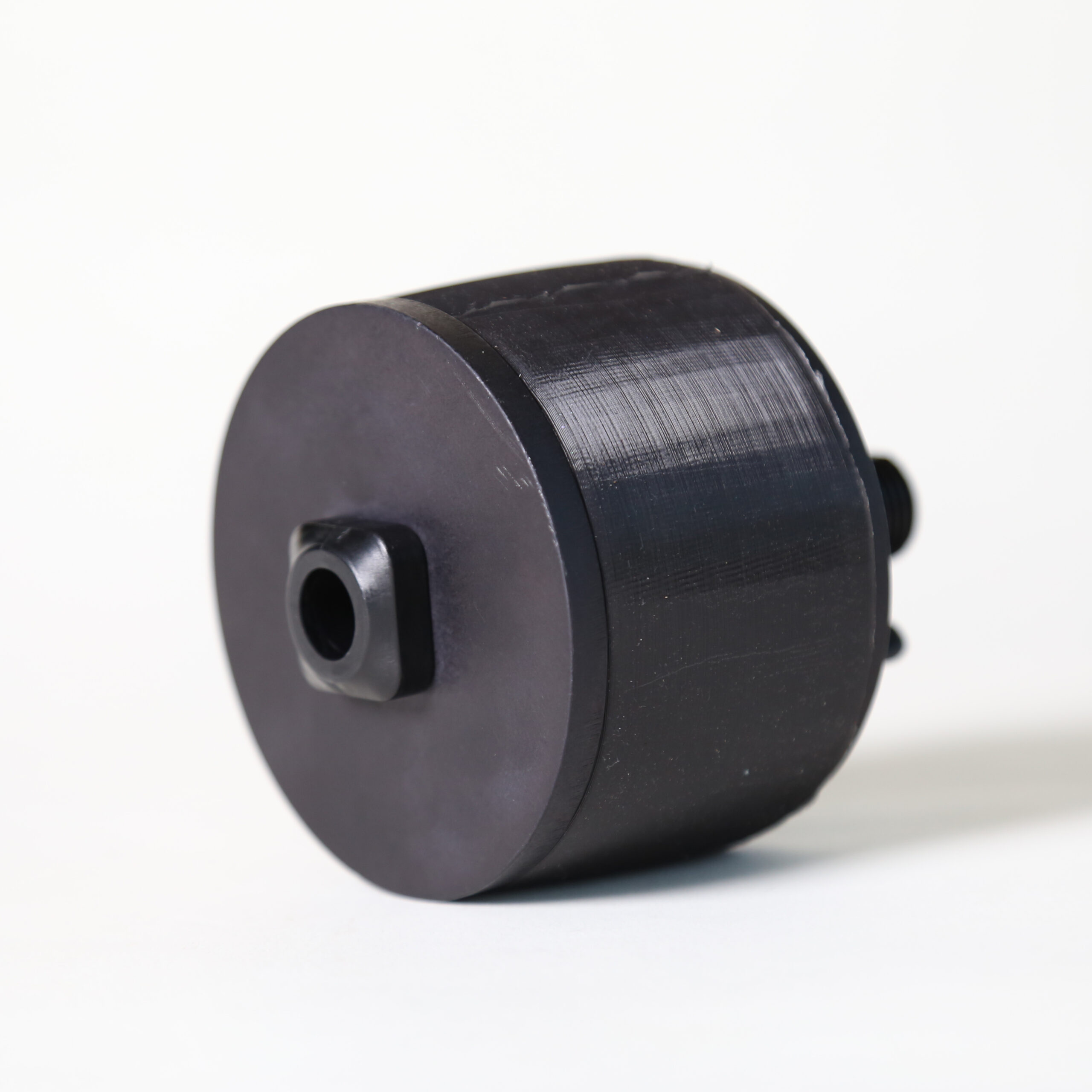

Round Plug Assembly
Part Number
Description
ID of Pipe
050-0072
R200
2.00-2.75 inch
050-0075
R275
2.75-3.50 inch
050-0078
R350
3.50-4.25 inch

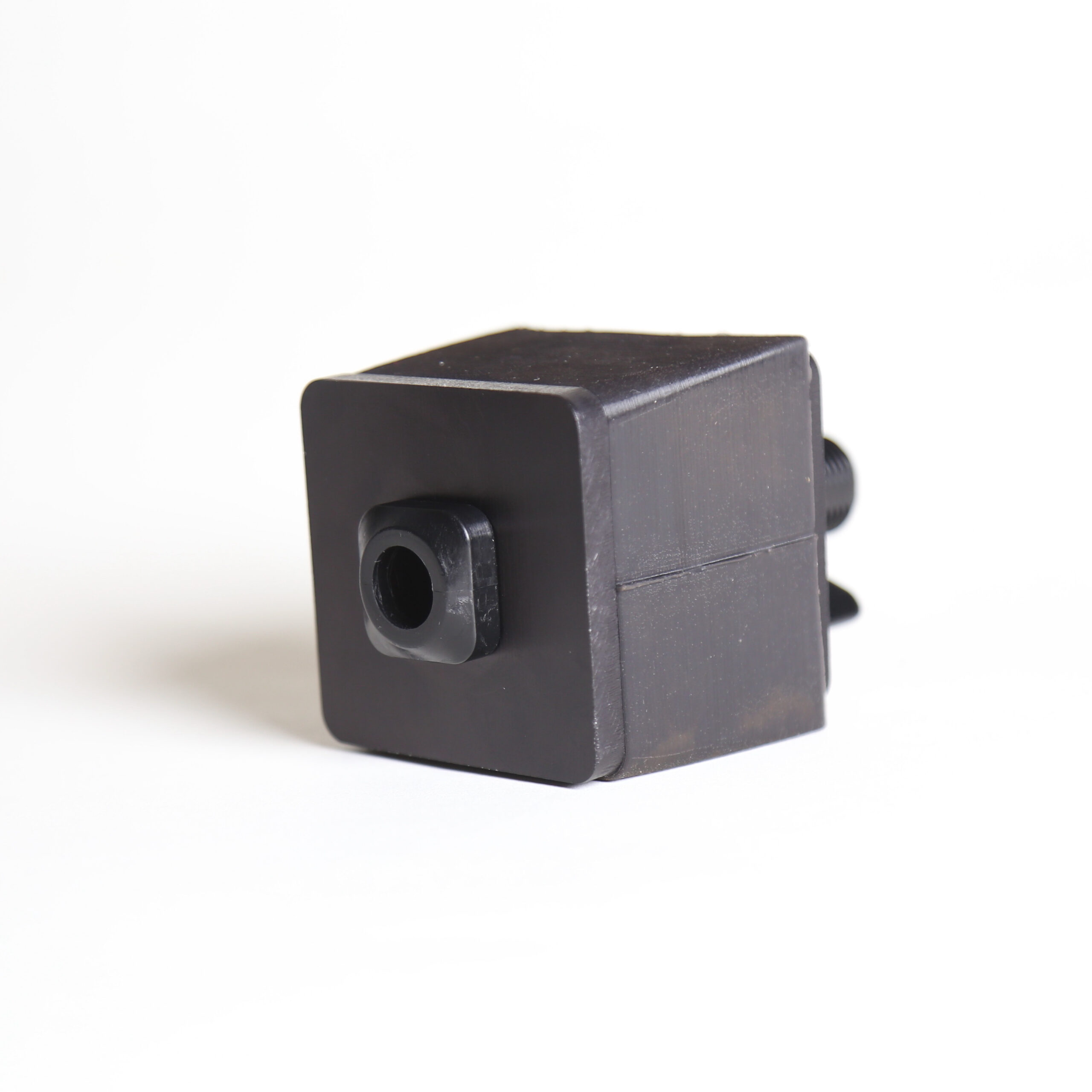

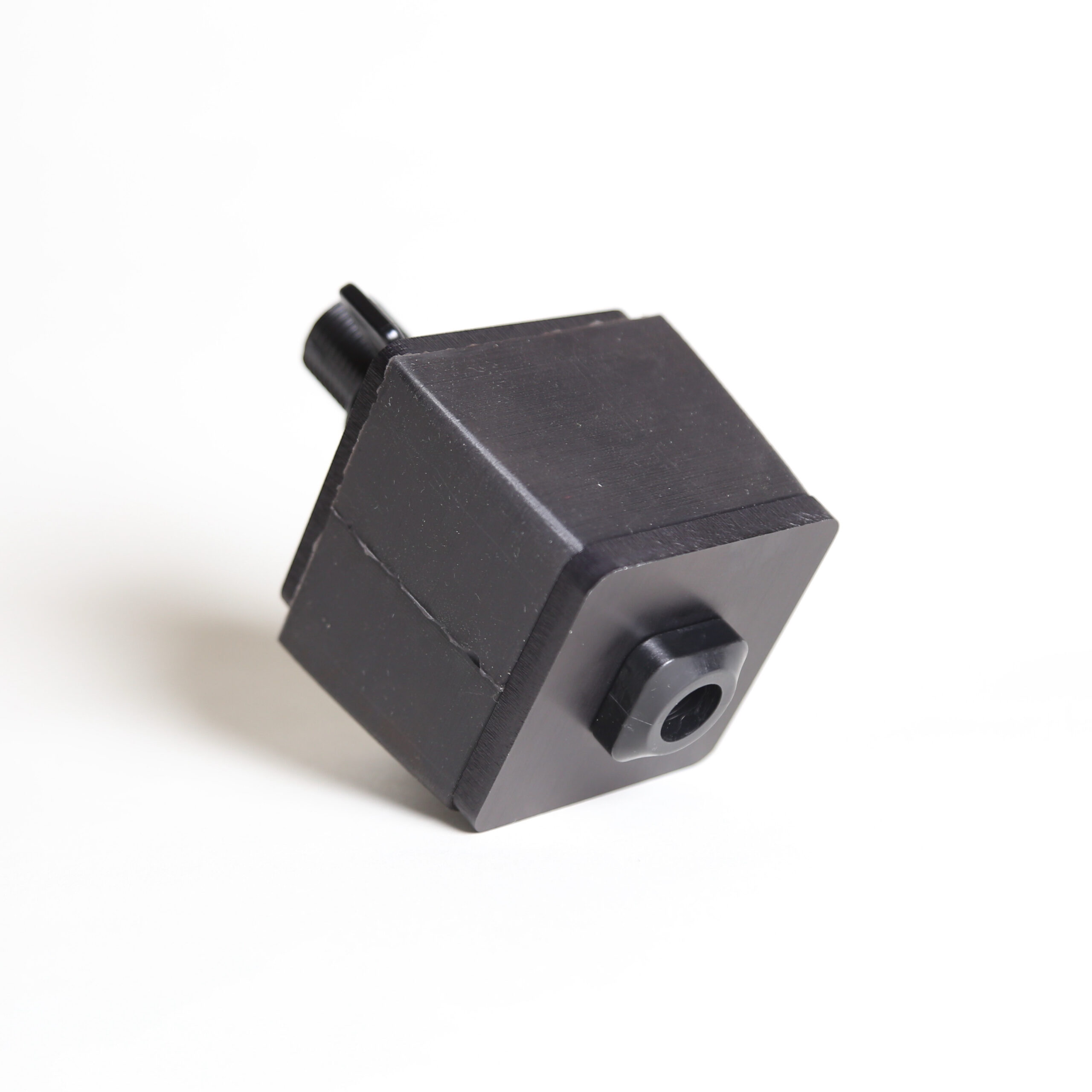

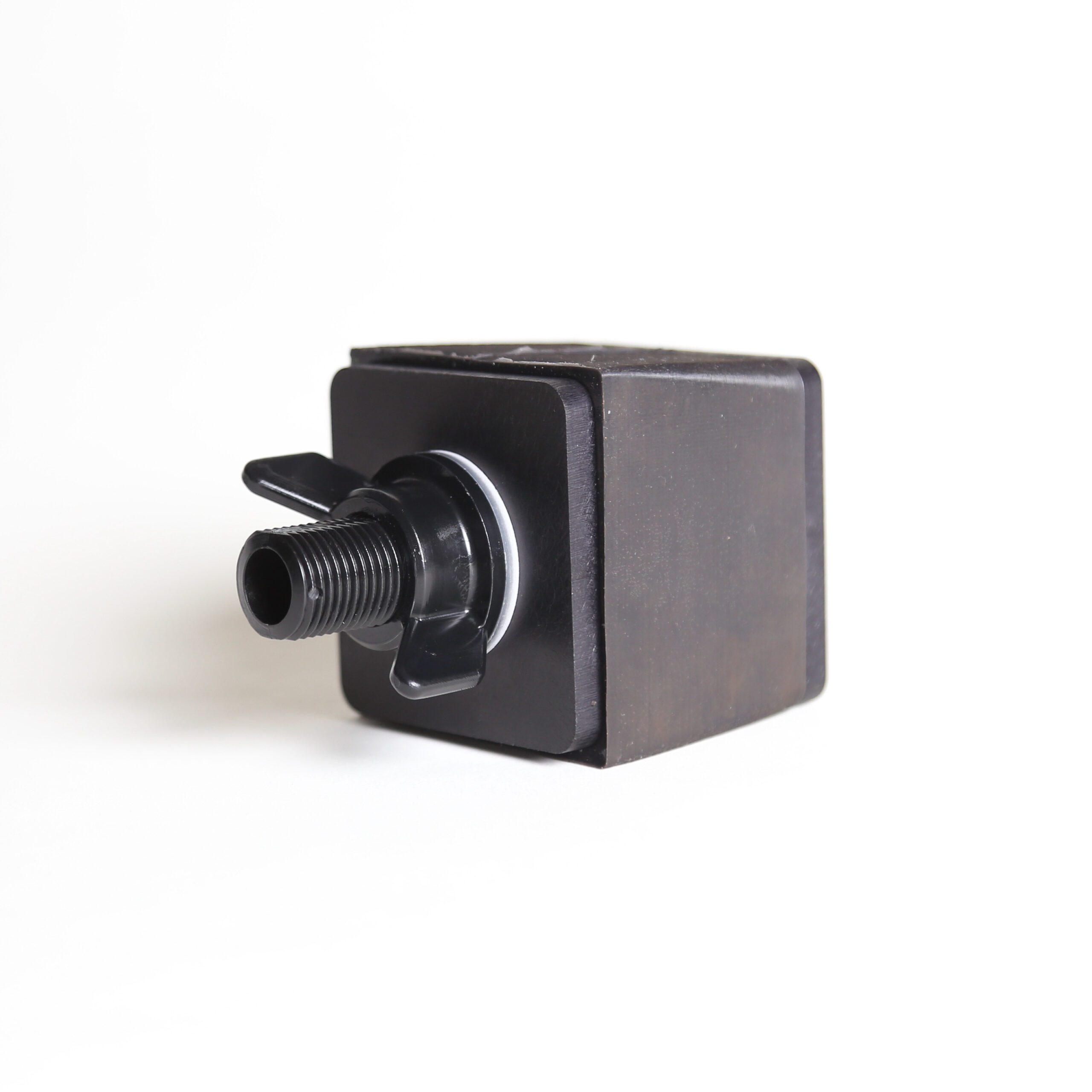

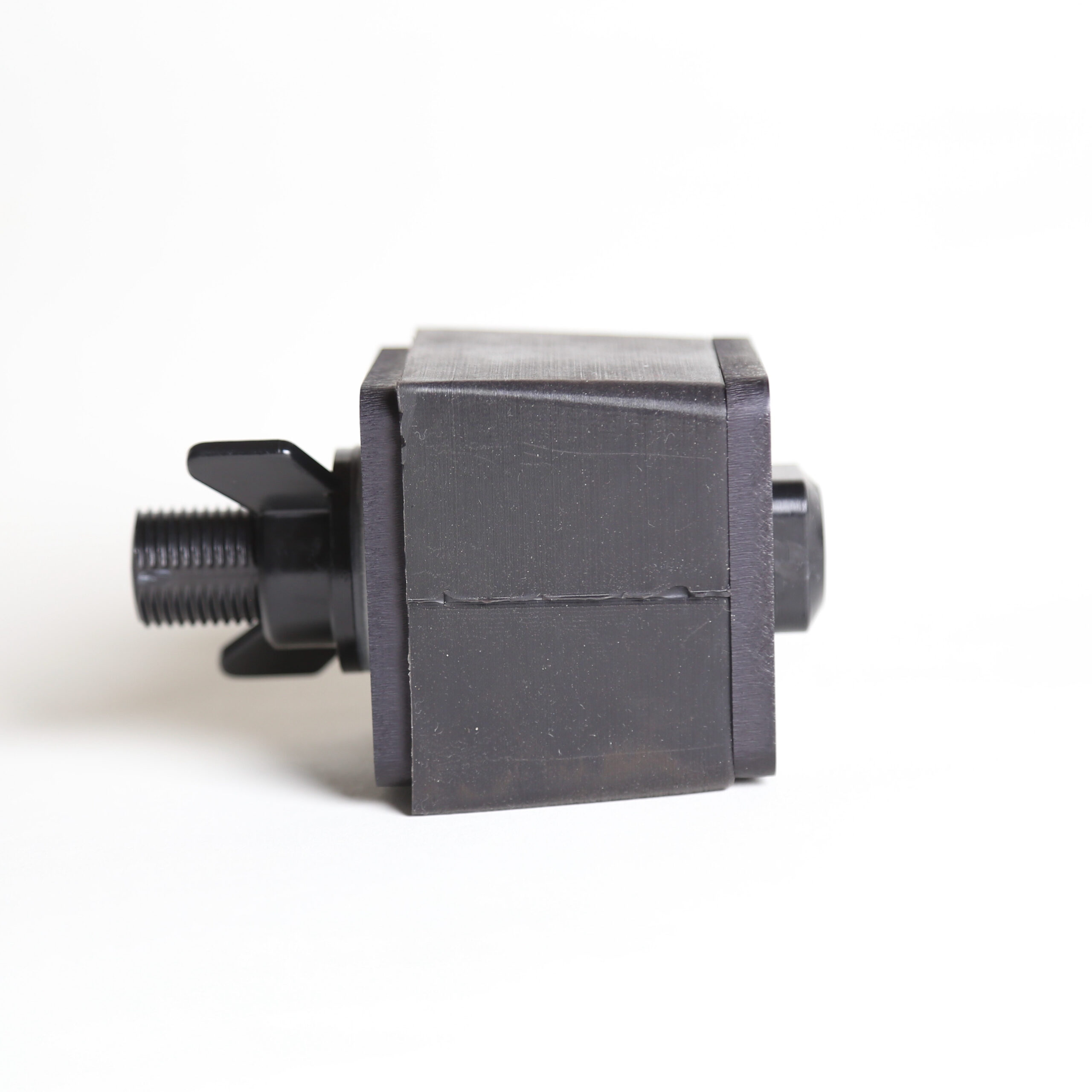

Square Plug Assembly
Inside Dimensions of Pipe
Part Number
Description
Height
Width
050-0031
S150
1.50-2.25 inch
1.50-2.25 inch
050-0063
S200
2.00-2.75 inch
2.00-2.75 inch
050-0032
S250
2.50-3.25 inch
2.50-3.25 inch
050-0066
S300
3.00-3.75 inch
3.00-3.75 inch
050-0033
S350
3.50-4.25 inch
3.50-4.25 inch

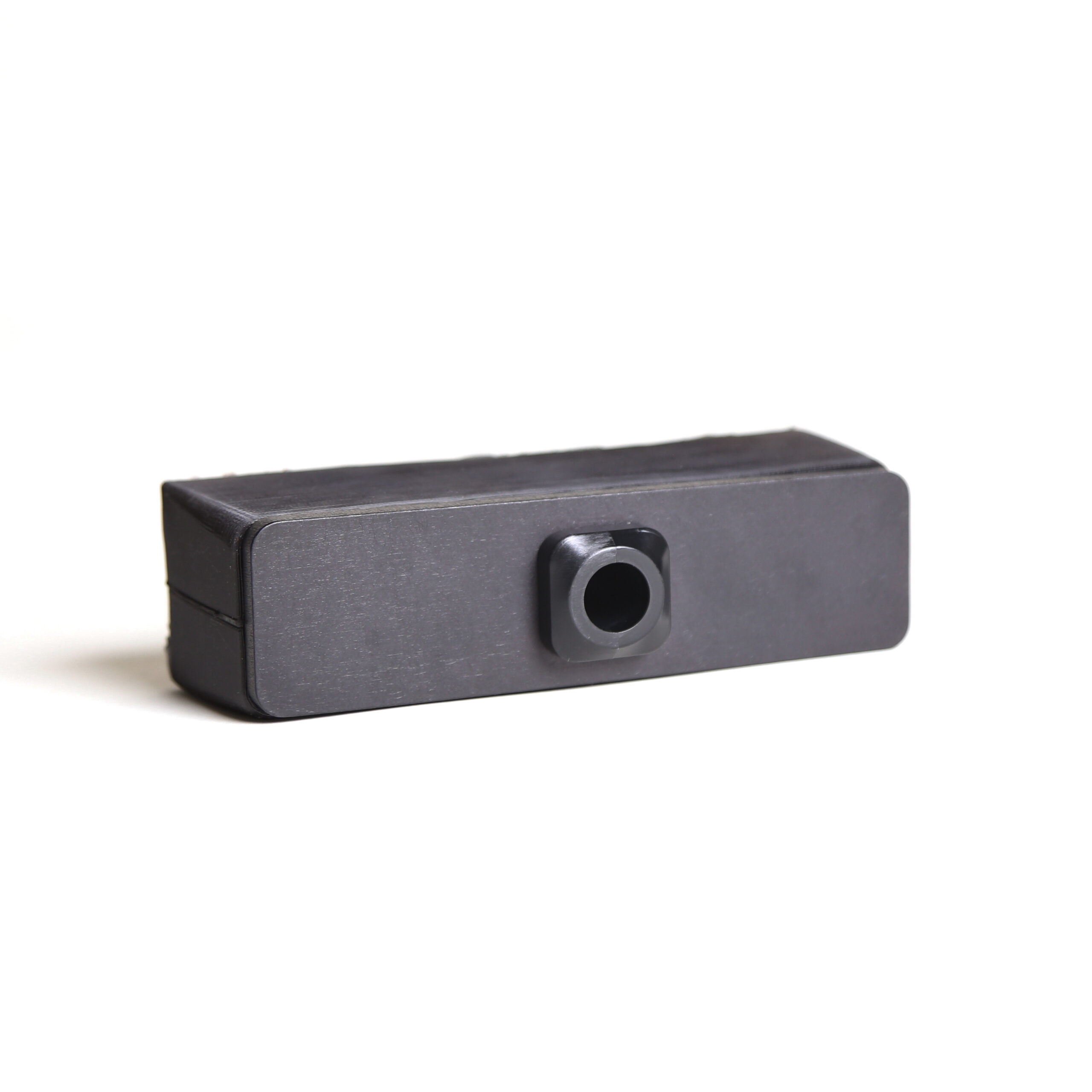

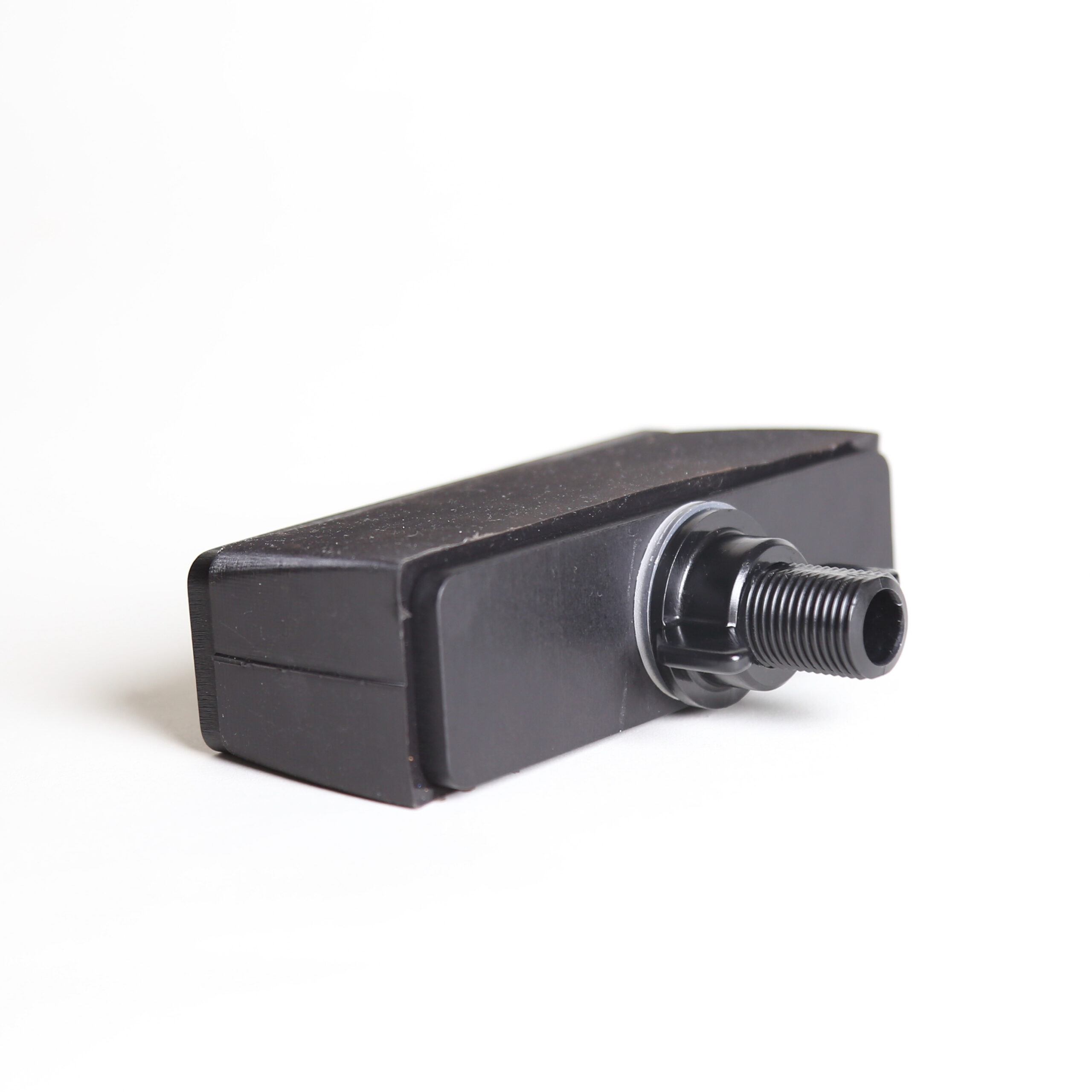

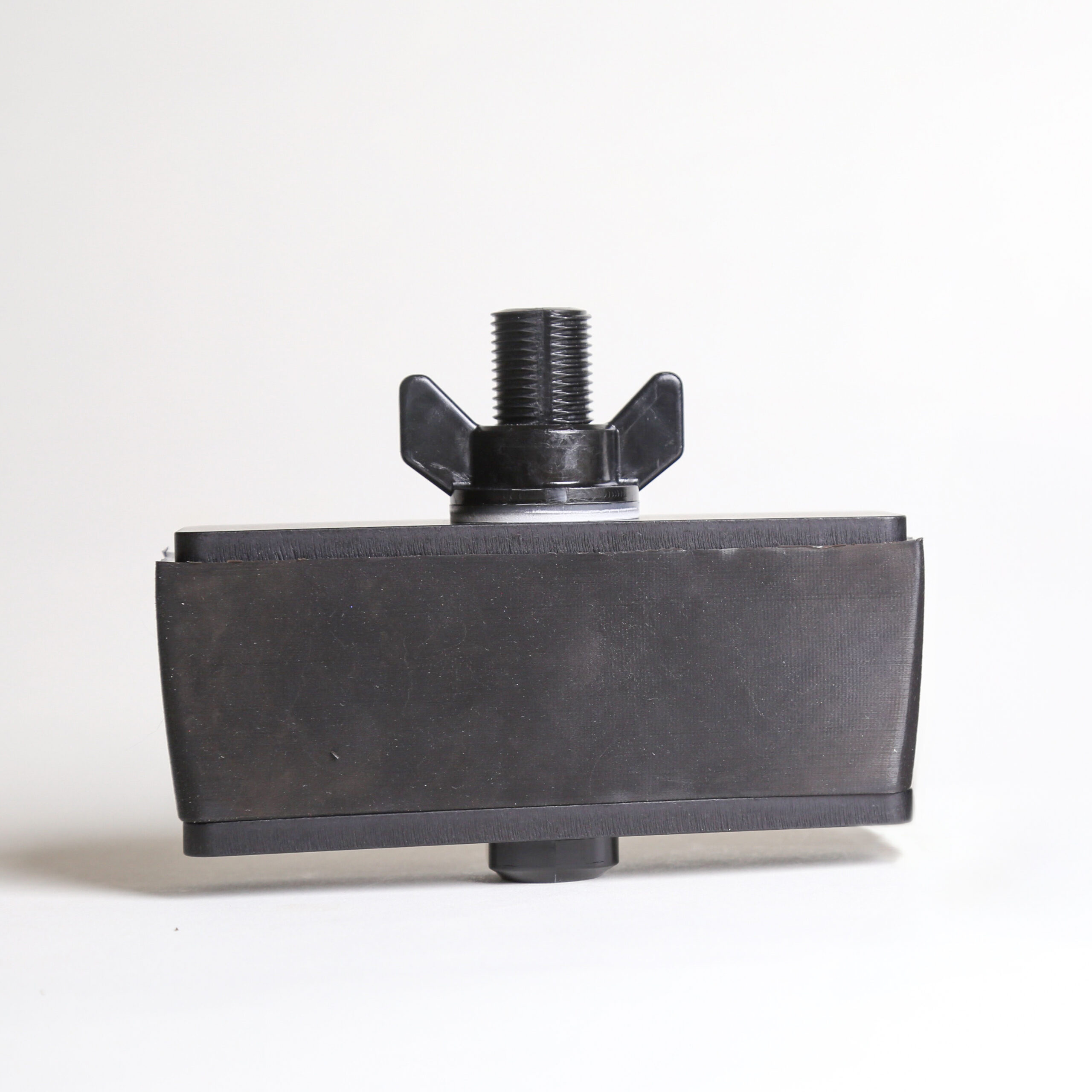

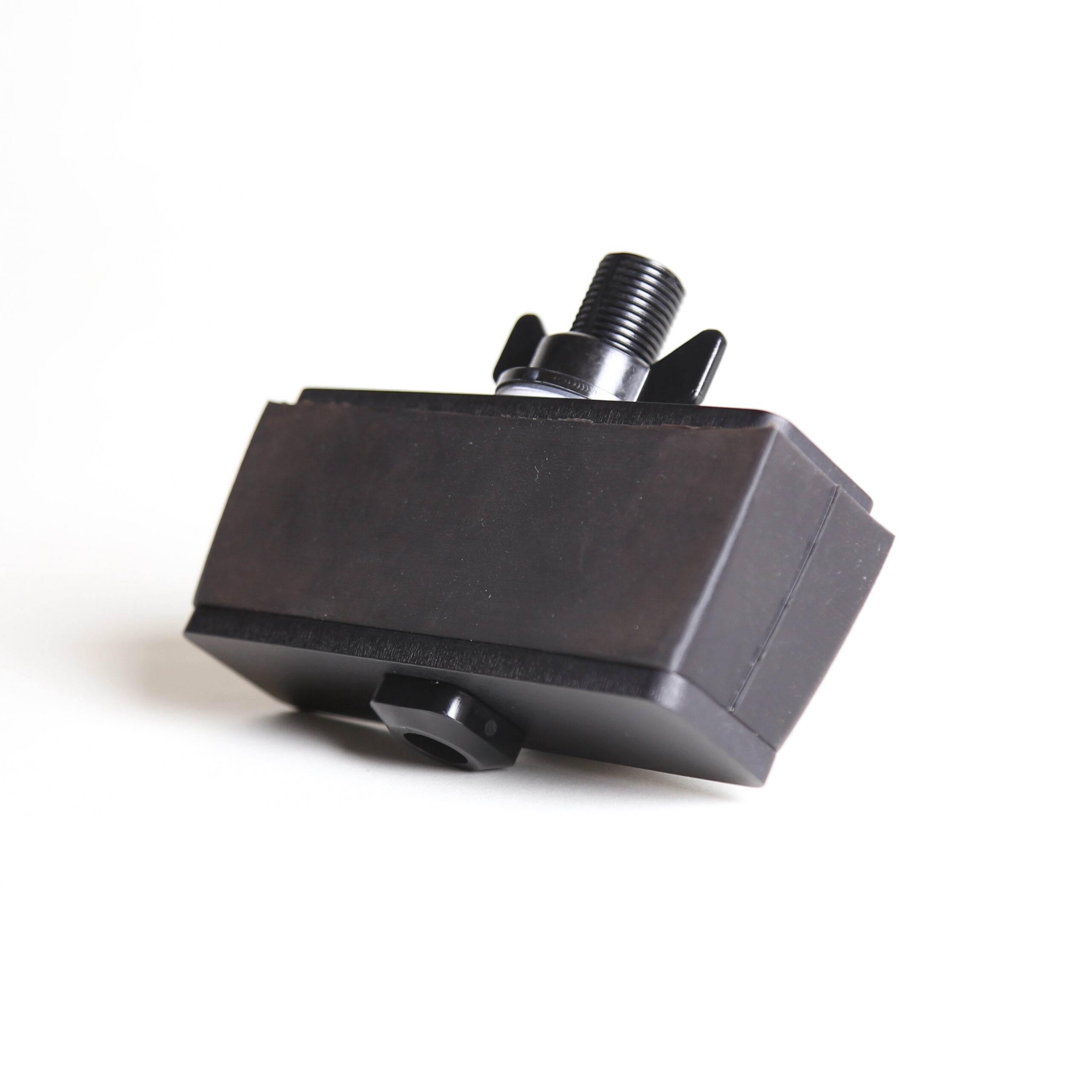

Rectangle Plug Assembly
Inside Dimension of Pipe
Part Number
Description
Height
Width
050-0034
REC150-250
1.50-2.25 inch
2.50-3.25 inch
050-0035
REC150-350
1.50-2.25 inch
3.50-4.25 inch
050-0036
REC150-550
1.50-2.25 inch
5.50-6.25 inch

Request More Information on the Coolant Support System Plugs

By providing a telephone number and submitting the form, you consent to be contacted by SMS text message. Message and data rates may apply. Reply STOP to opt out of further messaging.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Please fill out the form below for more information on the Bend-Tech Dragon

By providing a telephone number and submitting the form, you consent to be contacted by SMS text message. Message and data rates may apply. Reply STOP to opt out of further messaging.

System Requirements

Minimum Requirements:

  • Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11). Bend-Tech software does NOT run on MAC.
  • 1 GHz Processor
  • 2 GB RAM (Memory)
  • 1 GB Hard Drive Space
  • 1024 x 768 Screen Resolution
  • OpenGL 1.3 Compatible Graphics Card
  • .NET Framework 3.5 Installed
  • Active Internet Connection (Internet connection is needed during the first activation and then every 6 month, software can run offline in between)

Recommended Requirements:

  • Windows Operating System (7, 8, 8.1, 10, 11). Bend-Tech software does NOT run on MAC.
  • 1GHz Dual-Core Processor
  • 4GB Ram (Memory)
  • 1 GB Hard Drive Space
  • 1280 x 800 Screen Resolution or greater
  • OpenGL 1.3 Compatible Graphics Card
  • .NET Framework 3.5 SP1 Installed
  • PDF Reader Installed (for Help Guides)
  • Full Keyboard and Mouse
  • High-Speed Internet

Material Support Lift (B-Axies)

Bend-Tech A400 Material support
  • The material support lift automatically moves up and down and moves out of the way from the track when not needed. The complete automation prevents the center support from colliding with the track and chuck trolley.
  • The fully automatic material support lift prevents bowing in long pieces (as shown in red above) for accurate cutting, marking, and engraving.
  • As shown above, the material support lift goes up and down to maintain constant centered leveling support as a square or rectangle tube rotates.

Dragon A400 - Frequently Asked Questions

What are the material capabilities?

  • Tube Profile: 1” – 6” round,” to “Tube Profile: 0.75” – 6” round
  • Tube Material Type: steel, aluminum, stainless steel, DOM, HREW, black pipe, galvanized steel, and any type of electrically conductive material.
  • Tube Length: full stick length capable up to 24 feet.

What is included in the purchase of a Dragon A400?

The Dragon A400 machine, center support lifter, marker, engraver, laser pointer, technology package, and Bend-Tech Dragon Software. Requirements: An active internet connection, a plasma torch with a mechanized head, 220-240V outlets, two 110-120V outlets, misc. outlets, and an air compressor. Available add-ons: plasma system, material coolant system, angle/channel motorized gate, and additional software license.

What size of plasma cutter does the machine use?

Contact our sales personnel so they can assist in selecting the correct plasma system.

What is the warranty

Your Dragon A400 has a 12 month electronics and hardware limited warranty.

What service is available for the machine?

Customer support always answers the phone during our business hours and we strive to work with you to resolve the problem. If necessary, Bend-Tech can send a Dragon Technician to location.

How does the initial setup process work?

Your Dragon A400 is shipped partially assembled. All Dragon A400 machines are fully assembled, calibrated, and tested at headquarters. Then, the machines are partially disassembled for shipping. Your Dragon A400 comes with a comprehensive assembly manual.

Are replacement parts available?

Yes, we keep a full stock of inventory of parts.

Where is the Dragon A400 made?

Your Dragon A400 is proudly assembled here in the USA. All of our departments are located in our 36,000 square foot facility in Osceola, Wisconsin. Almost all of the parts are from the Minneapolis & St. Paul area here in the Midwest.

Does the software have import, export, CAD/CAM, and designer abilities?

Yes. The Dragon CAD/CAM software can import/export to and from many of the commonly used CAD programs (such as Solidworks, Inventor, AutoCAD, PRO Engineer, Tekla, SDS2, etc.) and can be used as a design program.

What software maintenance, charges, and updates occur with the Dragon?

A 2 Year Maintenance Package is included in the purchase of a Bend-Tech Dragon A400. After the 2 Year Maintenance Package has expired, there is a year long maintenance package that is repurchased on a yearly basis to continue to receive support and software updates.

What is your current lead time?

Typically, our lead time is 2 – 4 weeks. Bend-Tech always has inventory of the A400 by constantly manufacturing machines. For the current lead time, contact our sales personnel.

Is the Dragon A400 a production machine?

Yes

How many Dragon machines are out in the field?

Over 600

How does the Dragon A400 load?

From the front, back, top, or either side; it depends on how your shop is set up and what you are cutting. There are multiple ways to easily load material. The tube can be placed in the front gate, then tightened into the self-centering four jaw chuck, and then the front gate can be closed to the correct amount of tightness on the material. Usually, loading takes one person.

What is the cut speed?

The cut speed varies based on a variety of factors; including material size, cut design, material type, tolerance requirements, material thickness, the use of a coolant system, and others. Depending on the variables, the torch can run up to 120 inches per minute while cutting. Between cutting, the rapid travel can run up to 1100 inches per minute (X-axis) and 30 RPM (Y-axis).

What is the cut quality/dross level?

The dross level varies based on a variety of factors; including amperage used, cut speed, material size, cut design, material type, tolerance requirements, and material thickness. Optional coolant circulation system can greatly improve the cut quality and dross level. You can request a benchmark/sample package to see the Dragon cut parts in person.

What is the tolerance on the cuts?

+/- 0.010” (0.254mm)

How easy is the software to use?

Like many software programs, it does take some time to get comfortable knowing the ins and outs of the Bend-Tech Software. Most people become comfortable using the Bend-Tech Software after a couple days of practice and from there they become increasingly aware of the more detailed features. In case there is confusion with certain aspects of the software, we have Wiki pages and videos to help teach and train people on the software (see more). Also, the Bend-Tech support staff is always around to help during the normal weekly business hours. There is an On-site Training option available for purchase (see more). The On-site Training includes Bend-Tech sending a Dragon Technician on-site to train your Dragon Operator(s) on how to use the machine and the software. Customers are also allowed to come visit Bend-Tech headquarters to receive their training.

How long has Bend-Tech been in the tube and pipe business?

Since 2001

Do you have more questions for us? We have a full staff of dedicated sales personnel to help answer any of your questions:

  • Phone: 651-257-8715
  • sales@bend-tech.com

Dragon A400 - Post Purchase Items

Delivery

  • The lead time for the Dragon A400 is typically zero to four weeks. Shipping usually takes about a week, but varies on location. Once your Dragon has started shipping, you will receive a tracking number. Contact Bend-Tech sales personnel for a current lead time.
  • Bend-Tech is responsible for the package through the delivery process. Bend-Tech coordinates with the shipping company and if there are any problems, Bend-Tech resolves the error with the shipping company. If there is an error or damage in the shipping, please contact the Bend-Tech sales personnel right away. The Bend-Tech sales personnel focus on making sure the necessary steps are taken to get the machine up and running as soon as possible.
  • The Bend-Tech Dragon A400 is shipped in a fully enclosed wood crate. The crate is 10’ (3.05m) length by 5.5’ (1.68m) width by 7’ (2.13m) height.

Installation

The Dragon A400 ships partially assembled. All Dragon A400 machines are fully assembled and calibrated at headquarters. Then, the machines are partially disassembled for shipping. Your Dragon A400 comes with a comprehensive assembly guide to instruct on how to properly reassemble the machine.

Technical Documents

  • The technical documents are a detailed description on all of the different aspects of the machine so that an operator can be self-sufficient in all things with your Dragon A400 machine.
  • Included in the technical documentation is: Customer Order, Crate Packing Checklist, Assembly Manual, Start-Up and Training Manual.

Warranty

  • Your Dragon A400 has a 12 month limited warranty. Defective or faulty parts identified on the machine within this time period after delivery will be replaced at no charge and shipped to the location. After the 12 month warranty period, replacement parts can be purchased through Bend-Tech, LLC. and shipped to the location at the customer’s discretion.
  • THE WARRANTY MAY BECOME VOID OR LIMITED IN THE EVENT THAT YOU MAKE HARDWARE CHANGES OR ADAPTATIONS TO THE MACHINE.

Dragon A400 Software Maintenance Plan

A 2 year Software Maintenance Package is included in the purchase of a Bend-Tech Dragon A400. After the 2 Year Software Maintenance Package has expired, there is a year long maintenance package that is repurchased on a yearly basis to continue to receive support and software updates. The Dragon Software is always improving to ensure the best capabilities for your company and others. The Software Maintenance Package provides consistent updates to your software and keeps you running with the newest capabilities. Your Bend-Tech, LLC. sales person will contact you one month to two weeks before your maintenance plan expires to ask if you would like to re-apply for an annual subscription.

Dragon A400 - Shop Requirements

Machine Footprint

a400 footprints
  1. The 12’ length machine has a footprint of 19.1’ (5.82m) length by 2.5’ (0.76m) width by 6.1’ (1.86m) height.
  2. The 24’ length machine has a footprint of 32’ (9.75m) length by 2.5’ (0.76m) width by 6.1’ (1.86m) height.
  3. The enclosed workstation cabinet is the Technology Package is 2’ (0.61m) length by 2.1’ (0.64m) width by 5.3’ (1.62m) height and a power cord lead of 12’ (3.66m). (This is an add-on feature that does not come standard with the machine.)

Setup Requirements

a400 machine setup
  • Dedicated Windows desktop or laptop with an ethernet port (The computer running your Dragon machine cannot be running other machines. Technology Package comes standard with the machine.)
  • Active internet connection (for the activation of your Dragon Software and to receive important updates.)
  • >Plasma system with mechanized head.
  • 220-600V outlet (for plasma system)
  • Two to four 110-120V outlets (one for the machine, one for the laptop or computer, one if a computer monitor is being used, and one if the optional coolant system is purchased).
  • An air compressor or inert gas with two lines (one line for the control box and one line for the plasma system).
